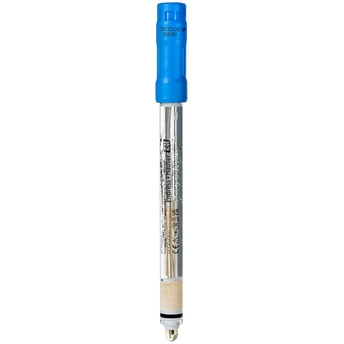

Memosens 2.0: Cutting-edge sensor technology reloaded
Make life easier, increase process safety and stay connected with Memosens 2.0 digital technology.
This product is not available in this market.
*Please contact your Endress+Hauser sales partner for any further questions.
Specs at a glance
-
Measuring range
pH 0 to 14
-
Process temperature
0 to 135 °C (32 to 275 °F) (0 to 100 °C (32 to 212 °F) application range)
-
Process pressure
1 bar, not intended for continues measurement in process
Field of application
The Memosens CPL59E starts to perform best, when other sensors cannot handle the conditions. The pH electode is suited for harsh conditions as e.g. in chemical and process industries. Due to the ion trap it offers a high stability to oxidizing agents. This protects the sensor and the junction from drift and inaccurate measurement.
Memosens CPL59E is suited for:
Check of on-line measuring loops
Analysis of grab samples (on-site as well as in the laboratory)
Measurement at process points where regular checks are recommended
In the following applications:
pH value setting in the media
Process water of chemical industry
Neutralization
Mixture monitoring
Benefits
The ion trap provides excellent performance and long-term stability even in harsh environments such as oxidizing agents
Large dirt-repellent PTFE-junction to avoid clogging
Innovative Memosens 2.0 technology: true plug and play and optimal traceability
Automatic registration and temperature compensation with the integrated temperature sensor
Tamper-proof data storage including serial number and calibration history for required quality management
Success stories
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
| FLEX selections | Technical excellence | Simplicity |
|---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
10 documents
-
-
Technical Information (TI)
Memosens CPL59E
pH measurement for laboratory measurements and random sampling
EN 31/01/2022Language:
English
Version:
31/01/2022
File size:
1.1 MB
File name:
TI01674CEN_0122-00.pdf
-
-
-
Operating Instruction (BA)
Memosens CPLxxE
pH laboratory sensors with Memosens 2.0 technology
EN 31/01/202223/01/2020Language:
English
Version:
31/01/2022
File size:
580.5 KB
File name:
BA02016CEN_0221-00.pdf
-
-
-
Competence Brochure (CP)
Gamme Memosens pour laboratoire
Donnez-moi des valeurs fiables en toute simplicité
Language:
French
Version:
20/10/2023
File size:
16.4 MB
File name:
CP01516CFR01.23-Gamme Memosens pour laboratoire.pdf
-
-
-
Competence Brochure (CP)
Memosens Laborportfolio
Einfache Messung und verlässliche Werte
Language:
German
Version:
22/02/2023
File size:
1.5 MB
File name:
CP01516C_Einfach Messung und verlaessliche Werte.pdf
-
-
-
Competence Brochure (CP)
Memosens Laboratory Portfolio
Make it easy and give me values I can trust
Language:
English
Version:
22/02/2023
File size:
1.5 MB
File name:
CP01516C_Make it easy and give me values I can trust.pdf
-
-
-
Innovation (IN)
Liquiline Mobile CML18および高性能ラボ用センサ
取扱いが容易で信頼性の高い値を提供
Language:
Japanese
Version:
01/03/2023
File size:
1.9 MB
File name:
IN01241CJA_0122.pdf
-
-
-
Manufacturer Declaration
Product family: Memosens
Product root: CPL51E-, CPL53E-, CPL57E-, CPL59E-
Declaration number: HE_01610_01.22
Manufacturer specification: RoHS
Additional information: China-RoHSEN 20/04/2022Language:
English
Version:
20/04/2022
File size:
352.1 KB
File name:
Manufacturers Declaration_CPL5xE_China-RoHS.pdf
-
-
-
EU Declaration
Product family: CeraGel, CeraLiquid, Ceramax, ConduMax H, ConduMax W, InduMax H, InduMax P, Liquiline, Memosens, Messkabel, Orbi Pac, OrbiPore, OrbiSint, OxyMax H, OxyMax W, TopHit
Product root: CLS15D-, CLS16D-, CLS21D-, CLS50D-, CLS54D-, CLS82D-,
CML18-, COS21D-, COS22D-, COS51D-, COS81D-, CPF82D-, CPL51E-
,
CPS11D-, CPS12D-, CPS16D-, CPS171D-, CPS31D-, CPS341D-, CPS41D-,
CPS42D-, CPS441D-, CPS471D-, CPS47D-, CPS491D-, CPS71D-,
CPS72D-,
CPS77D-, CPS91D-, CPS92D-, CPS96D-, CPS97D-, CYK10-, CYK20-
Declaration number: EC_00828_02.20EN 14/02/2022Language:
English
Version:
14/02/2022
File size:
281.9 KB
File name:
EC_00828_03.22_D-Sensoren CML18 EMV_RoHS.pdf
-
-
-
EU Declaration
Product family: Memosens
Product root: CPL51E-, CPL53E-, CPL57E-, CPL59E-
Declaration number: EU_01000_01.22EN 10/02/2022Language:
English
Version:
10/02/2022
File size:
284.1 KB
File name:
EU_01000_01.22_nonEx_CPLxxE.pdf
-
-
-
UK Conformity Assessed
Product family: Memosens
Product root: CPL51E-, CPL53E-, CPL57E-, CPL59E-
Declaration number: UK_00482_01.22Language:
English
Version:
10/02/2022
File size:
296.3 KB
File name:
UK_00482_01.22 CPLxxE_NonEx.pdf
-
