Memosens 2.0: Cutting-edge sensor technology reloaded
Make life easier, increase process safety and stay connected with Memosens 2.0 digital technology.
This product is not available in this market.
*Please contact your Endress+Hauser sales partner for any further questions.
Specs at a glance
-
Measuring range
5 μS/cm to 200 mS/cm
-
Process temperature
0 to 100 °C (32 to 212 °F)
-
Process pressure
1 bar, not intended for continuous measurement in process
Field of application

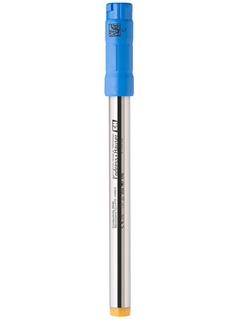

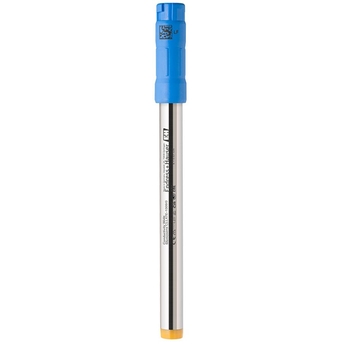

Memosens CLL47E is the four-electrode conductivity sensor for random sampling and measurements in the laboratory. It merges easy handling with plug and play system with effortless cleaning thanks to the seamless design. With its platinum electrodes and wide measuring range, a large variety of samples can be covered while delivering reliable measurements right at the measuring point.
Memosens CLL47E is suited for:
Check of on-line measuring loops
Analysis of grab samples (on-site as well as in the laboratory)
Measurement at process points where regular checks are recommended
In the following applications:
Drinking water
Cooling water
Wastewater
Process media analysis, e.g. cleaning solutions
Benefits
Wide range of measurement allows for analysis of many different samples
Precise adjustment and reliable measurement with a quality cerificate stating individual cell constant
Easy to clean thanks to seamless design
Solid platinum electrodes provide easy maintenance and long lifetime
Benefit from Memosens 2.0 technology with implemented cell constante, true plug and play and traceable calibration history
Integrated temperature sensor for automatic temperature compensation
Supports the requirements of quality management with tamper-proof data storage including serial number and calibration history
